springBoot-启动原理

private static Map<String, List<String>> loadSpringFactories(ClassLoader classLoader) {
    Map<String, List<String>> result = cache.get(classLoader);
    if (result != null) {
        return result;
    }

    result = new HashMap<>();
    try {
        Enumeration<URL> urls = classLoader.getResources(FACTORIES_RESOURCE_LOCATION);
        while (urls.hasMoreElements()) {
            URL url = urls.nextElement();
            UrlResource resource = new UrlResource(url);
            Properties properties = PropertiesLoaderUtils.loadProperties(resource);
            for (Map.Entry<?, ?> entry : properties.entrySet()) {
                String factoryTypeName = ((String) entry.getKey()).trim();
                String[] factoryImplementationNames =
                        StringUtils.commaDelimitedListToStringArray((String) entry.getValue());
                for (String factoryImplementationName : factoryImplementationNames) {
                    result.computeIfAbsent(factoryTypeName, key -> new ArrayList<>())
                            .add(factoryImplementationName.trim());
                }
            }
        }

        // Replace all lists with unmodifiable lists containing unique elements
        result.replaceAll((factoryType, implementations) -> implementations.stream().distinct()
                .collect(Collectors.collectingAndThen(Collectors.toList(), Collections::unmodifiableList)));
        cache.put(classLoader, result);
    }
    catch (IOException ex) {
        throw new IllegalArgumentException("Unable to load factories from location [" +
                FACTORIES_RESOURCE_LOCATION + "]", ex);
    }
    return result;
}

protected void postProcessApplicationContext(ConfigurableApplicationContext context) {
    if (this.beanNameGenerator != null) {
        context.getBeanFactory().registerSingleton(AnnotationConfigUtils.CONFIGURATION_BEAN_NAME_GENERATOR,
                this.beanNameGenerator);
    }
    if (this.resourceLoader != null) {
        if (context instanceof GenericApplicationContext) {
            ((GenericApplicationContext) context).setResourceLoader(this.resourceLoader);
        }
        if (context instanceof DefaultResourceLoader) {
            ((DefaultResourceLoader) context).setClassLoader(this.resourceLoader.getClassLoader());
        }
    }
    if (this.addConversionService) {
        context.getBeanFactory().setConversionService(context.getEnvironment().getConversionService());
    }
}

protected void applyInitializers(ConfigurableApplicationContext context) {
        for (ApplicationContextInitializer initializer : getInitializers()) {
            Class<?> requiredType = GenericTypeResolver.resolveTypeArgument(initializer.getClass(),
                    ApplicationContextInitializer.class);
            Assert.isInstanceOf(requiredType, context, "Unable to call initializer.");
            initializer.initialize(context);
        }
    }

public Set<Object> getAllSources() {
    Set<Object> allSources = new LinkedHashSet<>();
    if (!CollectionUtils.isEmpty(this.primarySources)) {
        allSources.addAll(this.primarySources);
    }
    if (!CollectionUtils.isEmpty(this.sources)) {
        allSources.addAll(this.sources);
    }
    return Collections.unmodifiableSet(allSources);
}

private BeanDefinitionRegistry getBeanDefinitionRegistry(ApplicationContext context) {
    if (context instanceof BeanDefinitionRegistry) {
        return (BeanDefinitionRegistry) context;
    }
    if (context instanceof AbstractApplicationContext) {
        return (BeanDefinitionRegistry) ((AbstractApplicationContext) context).getBeanFactory();
    }
    throw new IllegalStateException("Could not locate BeanDefinitionRegistry");
}

getBeanDefinitionRegistry

void load() {
    for (Object source : this.sources) {
    //source 为启动类
        load(source);
    }
}

private void load(Object source) {
    Assert.notNull(source, "Source must not be null");
    if (source instanceof Class<?>) {
    // 从class中加载
        load((Class<?>) source);
        return;
    }
    if (source instanceof Resource) {
    // 从 Resource 中加载
        load((Resource) source);
        return;
    }
    if (source instanceof Package) {
    // 从 Package 中加载
        load((Package) source);
        return;
    }
    if (source instanceof CharSequence) {
    // 从 CharSequence 中加载
        load((CharSequence) source);
        return;
    }
    throw new IllegalArgumentException("Invalid source type " + source.getClass());
}

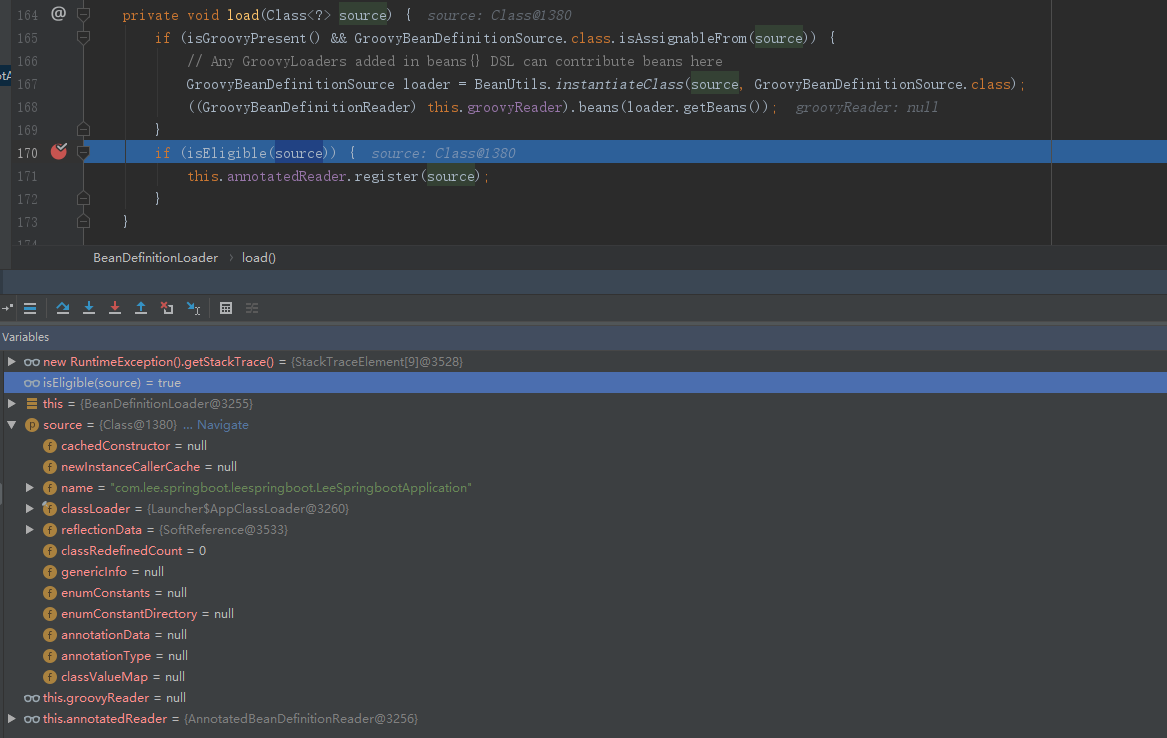

private void load(Class<?> source) {
    if (isGroovyPresent() && GroovyBeanDefinitionSource.class.isAssignableFrom(source)) {
        // Any GroovyLoaders added in beans{} DSL can contribute beans here
        GroovyBeanDefinitionSource loader = BeanUtils.instantiateClass(source, GroovyBeanDefinitionSource.class);
        ((GroovyBeanDefinitionReader) this.groovyReader).beans(loader.getBeans());
    }
    if (isEligible(source)) {
        // 将启动类的 BeanDefinition 注册到 BeanDefinitionMap 中
        this.annotatedReader.register(source);
    }
}

load()

protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
    PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());

    // Detect a LoadTimeWeaver and prepare for weaving, if found in the meantime
    // (e.g. through an @Bean method registered by ConfigurationClassPostProcessor)
    if (!NativeDetector.inNativeImage() && beanFactory.getTempClassLoader() == null && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
        beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
        beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
    }
}

// PostProcessorRegistrationDelegate
public static void invokeBeanFactoryPostProcessors(
        ConfigurableListableBeanFactory beanFactory, List<BeanFactoryPostProcessor> beanFactoryPostProcessors) {

    // WARNING: Although it may appear that the body of this method can be easily
    // refactored to avoid the use of multiple loops and multiple lists, the use
    // of multiple lists and multiple passes over the names of processors is
    // intentional. We must ensure that we honor the contracts for PriorityOrdered
    // and Ordered processors. Specifically, we must NOT cause processors to be
    // instantiated (via getBean() invocations) or registered in the ApplicationContext
    // in the wrong order.
    //
    // Before submitting a pull request (PR) to change this method, please review the
    // list of all declined PRs involving changes to PostProcessorRegistrationDelegate
    // to ensure that your proposal does not result in a breaking change:
    // https://github.com/spring-projects/spring-framework/issues?q=PostProcessorRegistrationDelegate+is%3Aclosed+label%3A%22status%3A+declined%22

    // Invoke BeanDefinitionRegistryPostProcessors first, if any.
    Set<String> processedBeans = new HashSet<>();

    if (beanFactory instanceof BeanDefinitionRegistry) {
        BeanDefinitionRegistry registry = (BeanDefinitionRegistry) beanFactory;
        List<BeanFactoryPostProcessor> regularPostProcessors = new ArrayList<>();
        List<BeanDefinitionRegistryPostProcessor> registryProcessors = new ArrayList<>();

        for (BeanFactoryPostProcessor postProcessor : beanFactoryPostProcessors) {
            if (postProcessor instanceof BeanDefinitionRegistryPostProcessor) {
                BeanDefinitionRegistryPostProcessor registryProcessor =
                        (BeanDefinitionRegistryPostProcessor) postProcessor;
                registryProcessor.postProcessBeanDefinitionRegistry(registry);
                registryProcessors.add(registryProcessor);
            }
            else {
                regularPostProcessors.add(postProcessor);
            }
        }

        // Do not initialize FactoryBeans here: We need to leave all regular beans
        // uninitialized to let the bean factory post-processors apply to them!
        // Separate between BeanDefinitionRegistryPostProcessors that implement
        // PriorityOrdered, Ordered, and the rest.
        List<BeanDefinitionRegistryPostProcessor> currentRegistryProcessors = new ArrayList<>();

        // First, invoke the BeanDefinitionRegistryPostProcessors that implement PriorityOrdered.
        String[] postProcessorNames =
                beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
        for (String ppName : postProcessorNames) {
            if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
                currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
                processedBeans.add(ppName);
            }
        }
        sortPostProcessors(currentRegistryProcessors, beanFactory);
        registryProcessors.addAll(currentRegistryProcessors);
        invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry, beanFactory.getApplicationStartup());
        currentRegistryProcessors.clear();

        // Next, invoke the BeanDefinitionRegistryPostProcessors that implement Ordered.
        postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
        for (String ppName : postProcessorNames) {
            if (!processedBeans.contains(ppName) && beanFactory.isTypeMatch(ppName, Ordered.class)) {
                currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
                processedBeans.add(ppName);
            }
        }
        sortPostProcessors(currentRegistryProcessors, beanFactory);
        registryProcessors.addAll(currentRegistryProcessors);
        invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry, beanFactory.getApplicationStartup());
        currentRegistryProcessors.clear();

        // Finally, invoke all other BeanDefinitionRegistryPostProcessors until no further ones appear.
        boolean reiterate = true;
        while (reiterate) {
            reiterate = false;
            postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
            for (String ppName : postProcessorNames) {
                if (!processedBeans.contains(ppName)) {
                    currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
                    processedBeans.add(ppName);
                    reiterate = true;
                }
            }
            sortPostProcessors(currentRegistryProcessors, beanFactory);
            registryProcessors.addAll(currentRegistryProcessors);
            invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry, beanFactory.getApplicationStartup());
            currentRegistryProcessors.clear();
        }

        // Now, invoke the postProcessBeanFactory callback of all processors handled so far.
        invokeBeanFactoryPostProcessors(registryProcessors, beanFactory);
        invokeBeanFactoryPostProcessors(regularPostProcessors, beanFactory);
    }

    else {
        // Invoke factory processors registered with the context instance.
        invokeBeanFactoryPostProcessors(beanFactoryPostProcessors, beanFactory);
    }

    // Do not initialize FactoryBeans here: We need to leave all regular beans
    // uninitialized to let the bean factory post-processors apply to them!
    String[] postProcessorNames =
            beanFactory.getBeanNamesForType(BeanFactoryPostProcessor.class, true, false);

    // Separate between BeanFactoryPostProcessors that implement PriorityOrdered,
    // Ordered, and the rest.
    List<BeanFactoryPostProcessor> priorityOrderedPostProcessors = new ArrayList<>();
    List<String> orderedPostProcessorNames = new ArrayList<>();
    List<String> nonOrderedPostProcessorNames = new ArrayList<>();
    for (String ppName : postProcessorNames) {
        if (processedBeans.contains(ppName)) {
            // skip - already processed in first phase above
        }
        else if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
            priorityOrderedPostProcessors.add(beanFactory.getBean(ppName, BeanFactoryPostProcessor.class));
        }
        else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
            orderedPostProcessorNames.add(ppName);
        }
        else {
            nonOrderedPostProcessorNames.add(ppName);
        }
    }

    // First, invoke the BeanFactoryPostProcessors that implement PriorityOrdered.
    sortPostProcessors(priorityOrderedPostProcessors, beanFactory);
    invokeBeanFactoryPostProcessors(priorityOrderedPostProcessors, beanFactory);

    // Next, invoke the BeanFactoryPostProcessors that implement Ordered.
    List<BeanFactoryPostProcessor> orderedPostProcessors = new ArrayList<>(orderedPostProcessorNames.size());
    for (String postProcessorName : orderedPostProcessorNames) {
        orderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
    }
    sortPostProcessors(orderedPostProcessors, beanFactory);
    invokeBeanFactoryPostProcessors(orderedPostProcessors, beanFactory);

    // Finally, invoke all other BeanFactoryPostProcessors.
    List<BeanFactoryPostProcessor> nonOrderedPostProcessors = new ArrayList<>(nonOrderedPostProcessorNames.size());
    for (String postProcessorName : nonOrderedPostProcessorNames) {
        nonOrderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
    }
    invokeBeanFactoryPostProcessors(nonOrderedPostProcessors, beanFactory);

    // Clear cached merged bean definitions since the post-processors might have
    // modified the original metadata, e.g. replacing placeholders in values...
    beanFactory.clearMetadataCache();
}

private static void invokeBeanDefinitionRegistryPostProcessors(
        Collection<? extends BeanDefinitionRegistryPostProcessor> postProcessors, BeanDefinitionRegistry registry, ApplicationStartup applicationStartup) {

    for (BeanDefinitionRegistryPostProcessor postProcessor : postProcessors) {
        StartupStep postProcessBeanDefRegistry = applicationStartup.start("spring.context.beandef-registry.post-process")
                .tag("postProcessor", postProcessor::toString);
        // 解析注解
        postProcessor.postProcessBeanDefinitionRegistry(registry);
        postProcessBeanDefRegistry.end();
    }
}

//     ConfigurationClassPostProcessor
public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) {
    int registryId = System.identityHashCode(registry);
    if (this.registriesPostProcessed.contains(registryId)) {
        throw new IllegalStateException(
                "postProcessBeanDefinitionRegistry already called on this post-processor against " + registry);
    }
    if (this.factoriesPostProcessed.contains(registryId)) {
        throw new IllegalStateException(
                "postProcessBeanFactory already called on this post-processor against " + registry);
    }
    this.registriesPostProcessed.add(registryId);

    processConfigBeanDefinitions(registry);
}
public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {
    List<BeanDefinitionHolder> configCandidates = new ArrayList<>();
    String[] candidateNames = registry.getBeanDefinitionNames();

    for (String beanName : candidateNames) {
        BeanDefinition beanDef = registry.getBeanDefinition(beanName);
        if (beanDef.getAttribute(ConfigurationClassUtils.CONFIGURATION_CLASS_ATTRIBUTE) != null) {
            if (logger.isDebugEnabled()) {
                logger.debug("Bean definition has already been processed as a configuration class: " + beanDef);
            }
        }
        else if (ConfigurationClassUtils.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory)) {
            configCandidates.add(new BeanDefinitionHolder(beanDef, beanName));
        }
    }

    // Return immediately if no @Configuration classes were found
    if (configCandidates.isEmpty()) {
        return;
    }

    // Sort by previously determined @Order value, if applicable
    configCandidates.sort((bd1, bd2) -> {
        int i1 = ConfigurationClassUtils.getOrder(bd1.getBeanDefinition());
        int i2 = ConfigurationClassUtils.getOrder(bd2.getBeanDefinition());
        return Integer.compare(i1, i2);
    });

    // Detect any custom bean name generation strategy supplied through the enclosing application context
    SingletonBeanRegistry sbr = null;
    if (registry instanceof SingletonBeanRegistry) {
        sbr = (SingletonBeanRegistry) registry;
        if (!this.localBeanNameGeneratorSet) {
            BeanNameGenerator generator = (BeanNameGenerator) sbr.getSingleton(
                    AnnotationConfigUtils.CONFIGURATION_BEAN_NAME_GENERATOR);
            if (generator != null) {
                this.componentScanBeanNameGenerator = generator;
                this.importBeanNameGenerator = generator;
            }
        }
    }

    if (this.environment == null) {
        this.environment = new StandardEnvironment();
    }

    // Parse each @Configuration class
    ConfigurationClassParser parser = new ConfigurationClassParser(
            this.metadataReaderFactory, this.problemReporter, this.environment,
            this.resourceLoader, this.componentScanBeanNameGenerator, registry);

    Set<BeanDefinitionHolder> candidates = new LinkedHashSet<>(configCandidates);
    Set<ConfigurationClass> alreadyParsed = new HashSet<>(configCandidates.size());
    do {
        StartupStep processConfig = this.applicationStartup.start("spring.context.config-classes.parse");
        //获取所有bean的全路径（解析各类注解）
        parser.parse(candidates);
        parser.validate();

        Set<ConfigurationClass> configClasses = new LinkedHashSet<>(parser.getConfigurationClasses());
        configClasses.removeAll(alreadyParsed);

        // Read the model and create bean definitions based on its content
        if (this.reader == null) {
            this.reader = new ConfigurationClassBeanDefinitionReader(
                    registry, this.sourceExtractor, this.resourceLoader, this.environment,
                    this.importBeanNameGenerator, parser.getImportRegistry());
        }
        // 使自动配置类生效
        this.reader.loadBeanDefinitions(configClasses);
        alreadyParsed.addAll(configClasses);
        processConfig.tag("classCount", () -> String.valueOf(configClasses.size())).end();

        candidates.clear();
        if (registry.getBeanDefinitionCount() > candidateNames.length) {
            String[] newCandidateNames = registry.getBeanDefinitionNames();
            Set<String> oldCandidateNames = new HashSet<>(Arrays.asList(candidateNames));
            Set<String> alreadyParsedClasses = new HashSet<>();
            for (ConfigurationClass configurationClass : alreadyParsed) {
                alreadyParsedClasses.add(configurationClass.getMetadata().getClassName());
            }
            for (String candidateName : newCandidateNames) {
                if (!oldCandidateNames.contains(candidateName)) {
                    BeanDefinition bd = registry.getBeanDefinition(candidateName);
                    if (ConfigurationClassUtils.checkConfigurationClassCandidate(bd, this.metadataReaderFactory) &&
                            !alreadyParsedClasses.contains(bd.getBeanClassName())) {
                        candidates.add(new BeanDefinitionHolder(bd, candidateName));
                    }
                }
            }
            candidateNames = newCandidateNames;
        }
    }
    while (!candidates.isEmpty());

    // Register the ImportRegistry as a bean in order to support ImportAware @Configuration classes
    if (sbr != null && !sbr.containsSingleton(IMPORT_REGISTRY_BEAN_NAME)) {
        sbr.registerSingleton(IMPORT_REGISTRY_BEAN_NAME, parser.getImportRegistry());
    }

    if (this.metadataReaderFactory instanceof CachingMetadataReaderFactory) {
        // Clear cache in externally provided MetadataReaderFactory; this is a no-op
        // for a shared cache since it'll be cleared by the ApplicationContext.
        ((CachingMetadataReaderFactory) this.metadataReaderFactory).clearCache();
    }
}

public void parse(Set<BeanDefinitionHolder> configCandidates) {
    for (BeanDefinitionHolder holder : configCandidates) {
        BeanDefinition bd = holder.getBeanDefinition();
        try {
            if (bd instanceof AnnotatedBeanDefinition) {
                parse(((AnnotatedBeanDefinition) bd).getMetadata(), holder.getBeanName());
            }
            else if (bd instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) bd).hasBeanClass()) {
                parse(((AbstractBeanDefinition) bd).getBeanClass(), holder.getBeanName());
            }
            else {
                parse(bd.getBeanClassName(), holder.getBeanName());
            }
        }
        catch (BeanDefinitionStoreException ex) {
            throw ex;
        }
        catch (Throwable ex) {
            throw new BeanDefinitionStoreException(
                    "Failed to parse configuration class [" + bd.getBeanClassName() + "]", ex);
        }
    }

    this.deferredImportSelectorHandler.process();
}

protected final void parse(AnnotationMetadata metadata, String beanName) throws IOException {
    processConfigurationClass(new ConfigurationClass(metadata, beanName), DEFAULT_EXCLUSION_FILTER);
}
protected void processConfigurationClass(ConfigurationClass configClass, Predicate<String> filter) throws IOException {
    if (this.conditionEvaluator.shouldSkip(configClass.getMetadata(), ConfigurationPhase.PARSE_CONFIGURATION)) {
        return;
    }

    ConfigurationClass existingClass = this.configurationClasses.get(configClass);
    if (existingClass != null) {
        if (configClass.isImported()) {
            if (existingClass.isImported()) {
                existingClass.mergeImportedBy(configClass);
            }
            // Otherwise ignore new imported config class; existing non-imported class overrides it.
            return;
        }
        else {
            // Explicit bean definition found, probably replacing an import.
            // Let's remove the old one and go with the new one.
            this.configurationClasses.remove(configClass);
            this.knownSuperclasses.values().removeIf(configClass::equals);
        }
    }

    // Recursively process the configuration class and its superclass hierarchy.
    SourceClass sourceClass = asSourceClass(configClass, filter);
    do {
        sourceClass = doProcessConfigurationClass(configClass, sourceClass, filter);
    }
    while (sourceClass != null);

    this.configurationClasses.put(configClass, configClass);
}

protected final SourceClass doProcessConfigurationClass(
        ConfigurationClass configClass, SourceClass sourceClass, Predicate<String> filter)
        throws IOException {

    if (configClass.getMetadata().isAnnotated(Component.class.getName())) {
        // Recursively process any member (nested) classes first
        processMemberClasses(configClass, sourceClass, filter);
    }

    // Process any @PropertySource annotations
    for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable(
            sourceClass.getMetadata(), PropertySources.class,
            org.springframework.context.annotation.PropertySource.class)) {
        if (this.environment instanceof ConfigurableEnvironment) {
            processPropertySource(propertySource);
        }
        else {
            logger.info("Ignoring @PropertySource annotation on [" + sourceClass.getMetadata().getClassName() +
                    "]. Reason: Environment must implement ConfigurableEnvironment");
        }
    }

    // Process any @ComponentScan annotations
    // 对启动类下的所有 @ComponentScan 进行解析加载，包含(@RestController @Service等)
    Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
            sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
    if (!componentScans.isEmpty() &&
            !this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
        for (AnnotationAttributes componentScan : componentScans) {
            // The config class is annotated with @ComponentScan -> perform the scan immediately
            Set<BeanDefinitionHolder> scannedBeanDefinitions =
                    this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
            // Check the set of scanned definitions for any further config classes and parse recursively if needed
            for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
                BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
                if (bdCand == null) {
                    bdCand = holder.getBeanDefinition();
                }
                if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
                    parse(bdCand.getBeanClassName(), holder.getBeanName());
                }
            }
        }
    }

    // Process any @Import annotations
    processImports(configClass, sourceClass, getImports(sourceClass), filter, true);

    // Process any @ImportResource annotations
    AnnotationAttributes importResource =
            AnnotationConfigUtils.attributesFor(sourceClass.getMetadata(), ImportResource.class);
    if (importResource != null) {
        String[] resources = importResource.getStringArray("locations");
        Class<? extends BeanDefinitionReader> readerClass = importResource.getClass("reader");
        for (String resource : resources) {
            String resolvedResource = this.environment.resolveRequiredPlaceholders(resource);
            configClass.addImportedResource(resolvedResource, readerClass);
        }
    }

    // Process individual @Bean methods
    Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
    for (MethodMetadata methodMetadata : beanMethods) {
        configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
    }

    // Process default methods on interfaces
    processInterfaces(configClass, sourceClass);

    // Process superclass, if any
    if (sourceClass.getMetadata().hasSuperClass()) {
        String superclass = sourceClass.getMetadata().getSuperClassName();
        if (superclass != null && !superclass.startsWith("java") &&
                !this.knownSuperclasses.containsKey(superclass)) {
            this.knownSuperclasses.put(superclass, configClass);
            // Superclass found, return its annotation metadata and recurse
            return sourceClass.getSuperClass();
        }
    }

    // No superclass -> processing is complete
    return null;
}

private Set<SourceClass> getImports(SourceClass sourceClass) throws IOException {
    Set<SourceClass> imports = new LinkedHashSet<>();
    Set<SourceClass> visited = new LinkedHashSet<>();
    collectImports(sourceClass, imports, visited);
    return imports;
}
    private void collectImports(SourceClass sourceClass, Set<SourceClass> imports, Set<SourceClass> visited)
        throws IOException {

    if (visited.add(sourceClass)) {
        for (SourceClass annotation : sourceClass.getAnnotations()) {
            String annName = annotation.getMetadata().getClassName();
            if (!annName.equals(Import.class.getName())) {
                collectImports(annotation, imports, visited);
            }
        }
        imports.addAll(sourceClass.getAnnotationAttributes(Import.class.getName(), "value"));
    }
}

public void process() {
    List<DeferredImportSelectorHolder> deferredImports = this.deferredImportSelectors;
    this.deferredImportSelectors = null;
    try {
        if (deferredImports != null) {
            DeferredImportSelectorGroupingHandler handler = new DeferredImportSelectorGroupingHandler();
            deferredImports.sort(DEFERRED_IMPORT_COMPARATOR);
            deferredImports.forEach(handler::register);
            handler.processGroupImports();
        }
    }
    finally {
        this.deferredImportSelectors = new ArrayList<>();
    }
}

// ConfigurationClassParser
public void processGroupImports() {
    for (DeferredImportSelectorGrouping grouping : this.groupings.values()) {
        Predicate<String> exclusionFilter = grouping.getCandidateFilter();
        grouping.getImports().forEach(entry -> {
            ConfigurationClass configurationClass = this.configurationClasses.get(entry.getMetadata());
            try {
                // 处理配置类上的注解
                processImports(configurationClass, asSourceClass(configurationClass, exclusionFilter),
                        Collections.singleton(asSourceClass(entry.getImportClassName(), exclusionFilter)),
                        exclusionFilter, false);
            }
            catch (BeanDefinitionStoreException ex) {
                throw ex;
            }
            catch (Throwable ex) {
                throw new BeanDefinitionStoreException(
                        "Failed to process import candidates for configuration class [" +
                                configurationClass.getMetadata().getClassName() + "]", ex);
            }
        });
    }
}


// DeferredImportSelectorGrouping
public Iterable<Group.Entry> getImports() {
    for (DeferredImportSelectorHolder deferredImport : this.deferredImports) {
        // 遍历DeferredImportSelectorHolder对象集合deferredImports，deferrdImports集合装了各种ImportSelector（AutoConfigurationImportSelect）
        this.group.process(deferredImport.getConfigurationClass().getMetadata(),
                deferredImport.getImportSelector());
    }
    // 经过上面处理，然后再进行选择导入哪写配置类
    return this.group.selectImports();
}
//AutoConfigurationImportSelector
public void process(AnnotationMetadata annotationMetadata, DeferredImportSelector deferredImportSelector) {
    Assert.state(deferredImportSelector instanceof AutoConfigurationImportSelector,
            () -> String.format("Only %s implementations are supported, got %s",
                    AutoConfigurationImportSelector.class.getSimpleName(),
                    deferredImportSelector.getClass().getName()));
    // 获取自动配置类放入 AutoConfigurationEntry 对象中
    AutoConfigurationEntry autoConfigurationEntry = ((AutoConfigurationImportSelector) deferredImportSelector)
            .getAutoConfigurationEntry(annotationMetadata);
    // 将封装了自动配置类的 AutoConfigurationEntry 对象装进 autoConfigurationEntries 集合
    this.autoConfigurationEntries.add(autoConfigurationEntry);
    // 遍历刚获取的自动配置类
    for (String importClassName : autoConfigurationEntry.getConfigurations()) {
        // 将符合条件的自动配置类作为 key，annotationMetadata作为值放进 entries 集合中
        this.entries.putIfAbsent(importClassName, annotationMetadata);
    }
}
// AutoConfigurationImportSelector
public Iterable<Entry> selectImports() {
    if (this.autoConfigurationEntries.isEmpty()) {
        return Collections.emptyList();
    }
            .getAutoConfigurationEntry(annotationMetadata);
    // 得到所有要排除的自动配置类集合
    Set<String> allExclusions = this.autoConfigurationEntries.stream()
            .map(AutoConfigurationEntry::getExclusions).flatMap(Collection::stream).collect(Collectors.toSet());
            .getAutoConfigurationEntry(annotationMetadata);
    // 得到经过过滤后所有符合条件的自动配置类集合
    Set<String> processedConfigurations = this.autoConfigurationEntries.stream()
            .map(AutoConfigurationEntry::getConfigurations).flatMap(Collection::stream)
            .collect(Collectors.toCollection(LinkedHashSet::new));
            .getAutoConfigurationEntry(annotationMetadata);
    // 移除需要排除的自动配置类
    processedConfigurations.removeAll(allExclusions);

            .getAutoConfigurationEntry(annotationMetadata);
    // 对标注有 @Order注解的自动配置类进行排序
    return sortAutoConfigurations(processedConfigurations, getAutoConfigurationMetadata()).stream()
            .map((importClassName) -> new Entry(this.entries.get(importClassName), importClassName))
            .collect(Collectors.toList());
}

private void processImports(ConfigurationClass configClass, SourceClass currentSourceClass,
        Collection<SourceClass> importCandidates, Predicate<String> exclusionFilter,
        boolean checkForCircularImports) {

    if (importCandidates.isEmpty()) {
        return;
    }

    if (checkForCircularImports && isChainedImportOnStack(configClass)) {
        this.problemReporter.error(new CircularImportProblem(configClass, this.importStack));
    }
    else {
        this.importStack.push(configClass);
        try {
            for (SourceClass candidate : importCandidates) {
                if (candidate.isAssignable(ImportSelector.class)) {
                    // Candidate class is an ImportSelector -> delegate to it to determine imports
                    Class<?> candidateClass = candidate.loadClass();
                    ImportSelector selector = ParserStrategyUtils.instantiateClass(candidateClass, ImportSelector.class,
                            this.environment, this.resourceLoader, this.registry);
                    Predicate<String> selectorFilter = selector.getExclusionFilter();
                    if (selectorFilter != null) {
                        exclusionFilter = exclusionFilter.or(selectorFilter);
                    }
                    if (selector instanceof DeferredImportSelector) {
                        this.deferredImportSelectorHandler.handle(configClass, (DeferredImportSelector) selector);
                    }
                    else {
                        String[] importClassNames = selector.selectImports(currentSourceClass.getMetadata());
                        Collection<SourceClass> importSourceClasses = asSourceClasses(importClassNames, exclusionFilter);
                        processImports(configClass, currentSourceClass, importSourceClasses, exclusionFilter, false);
                    }
                }
                else if (candidate.isAssignable(ImportBeanDefinitionRegistrar.class)) {
                    // Candidate class is an ImportBeanDefinitionRegistrar ->
                    // delegate to it to register additional bean definitions
                    Class<?> candidateClass = candidate.loadClass();
                    ImportBeanDefinitionRegistrar registrar =
                            ParserStrategyUtils.instantiateClass(candidateClass, ImportBeanDefinitionRegistrar.class,
                                    this.environment, this.resourceLoader, this.registry);
                    configClass.addImportBeanDefinitionRegistrar(registrar, currentSourceClass.getMetadata());
                }
                else {
                    // Candidate class not an ImportSelector or ImportBeanDefinitionRegistrar ->
                    // process it as an @Configuration class
                    this.importStack.registerImport(
                            currentSourceClass.getMetadata(), candidate.getMetadata().getClassName());
                    processConfigurationClass(candidate.asConfigClass(configClass), exclusionFilter);
                }
            }
        }
        catch (BeanDefinitionStoreException ex) {
            throw ex;
        }
        catch (Throwable ex) {
            throw new BeanDefinitionStoreException(
                    "Failed to process import candidates for configuration class [" +
                    configClass.getMetadata().getClassName() + "]", ex);
        }
        finally {
            this.importStack.pop();
        }
    }
}
